Vehicle / Research dossier
NXT MK1 EVO
A planned vehicle.
Research before testing.
The NXT MK1 EVO is the vehicle in our long-term plan. This page brings together manufacturer brochure specifications, official product resources and questions to assess before acquisition and testing.
NXT official product pageProject Apex has not acquired the car and has not recorded a real-world Nürburgring Nordschleife result. No manufacturer endorsement or partnership is claimed.
Part of the long-term plan.
Project Apex intends to pursue its long-term Nordschleife goal with a Chinese-developed, track-focused prototype. The planned NXT MK1 EVO gives that research a vehicle to investigate; it does not establish that the car has been purchased, tested or proven suitable for this goal.
The project remains in its foundation and simulator-development stage. Current vehicle research is limited to document review. Acquisition, checks on the actual vehicle and real-world testing remain future work.
- Project intention
- Planned vehicle
- Evidence boundary
- No Project Apex vehicle testing yet
Manufacturer data, with context.
The specifications below come from the NXT MK1 EVO product brochure, retaining its published units and stated conditions. Manufacturer resources are collected at the end of this page.
The brochure does not state an edition or publication date. Specifications may change with options and event rules. These are manufacturer statements, not Project Apex measurements. Published aerodynamic figures still require clarification of units and test conditions.
Chassis & dimensions
Vehicle layout, dimensions, mass and frame.
- Vehicle layout
- Enclosed single-seat prototype
- Length
- 4,226 mm
- Width
- 1,850 mm
- Height
- 1,115 mm
- Wheelbase
- 2,585 mm
- Mass
- 760 kg, including operating fluids and excluding fuel
- Frame
- Tubular spaceframe
- Fuel tank capacity
- 80 L
Powertrain
Engine, transmission and the conditions attached to published output figures.
- Engine
- Turbocharged inline-four
- Displacement
- 2,261 cc
- Maximum power
- 451 hp at the crankshaft
- Peak torque
- 550 N·m
- Engine management
- Marelli Motorsport ECU
- Gearbox
- Hewland TMT-200, six-speed sequential
- Gearshift
- Electronically controlled pneumatic paddle shift
- Limited-slip differential
- Powerflow™ multi-plate
Suspension
Suspension layout and documented adjustments.
- Suspension layout
- Pushrod double-wishbone
- Dampers
- Öhlins TTX-36, two-way adjustable
- Chassis adjustments
- Adjustable anti-roll bars, ride height and two-way dampers
Braking
Brake hardware and the stated ABS option.
- Front brake discs
- 345 × 30 mm
- Rear brake discs
- 330 × 25.4 mm
- Brake calipers
- Four-piston, front and rear
- ABS
- Optional
Aerodynamics
Aerodynamic hardware described in the brochure.
- Front wing
- Adjustable two-element wing
- Rear wing
- Adjustable two-element wing
Materials
Verified construction materials and component definitions.
- Body panels
- CFRP carbon-fibre body panels
- Windows
- Scratch-resistant polycarbonate
- Post-turbo exhaust
- Titanium alloy
A set of criteria, before a conclusion.
The planned vehicle aligns with the project’s intended Chinese-developed prototype direction. The following are future evaluation questions. They are not claims about the NXT MK1 EVO’s capabilities.
Driver development
Can the verified vehicle configuration support a progressive, repeatable approach to learning and testing?
Engineering understanding
What official technical information and adjustment guidance are available, and what can be measured responsibly?
Practical operation
What would ownership, maintenance, parts support, safety preparation and track access require?
Nordschleife preparation
What additional validation would be needed before considering real-world running at the Nordschleife?
How to read this dossier
Sources, analysis and hypotheses.
- Official information
- Manufacturer product information and specifications. Options and final delivered configuration remain subject to the manufacturer’s documents.
- Independent analysis
- Project Apex reasoning with its method, assumptions and evidence. No vehicle-specific engineering analysis has been published yet.
- Unverified hypothesis
- A question to test, explicitly marked as unverified. The evaluation questions above do not establish suitability or performance.
NXT product resources.
NXT’s official product pages are linked below. Specifications on this page cite the separately reviewed manufacturer brochure. Its edition and correspondence with the current online product information remain unconfirmed.
- NXT MK1 EVO product brochure (Chinese)
- NXT MK1 EVO — official product page (English)
- NXT MK1 EVO — official product page (Chinese)

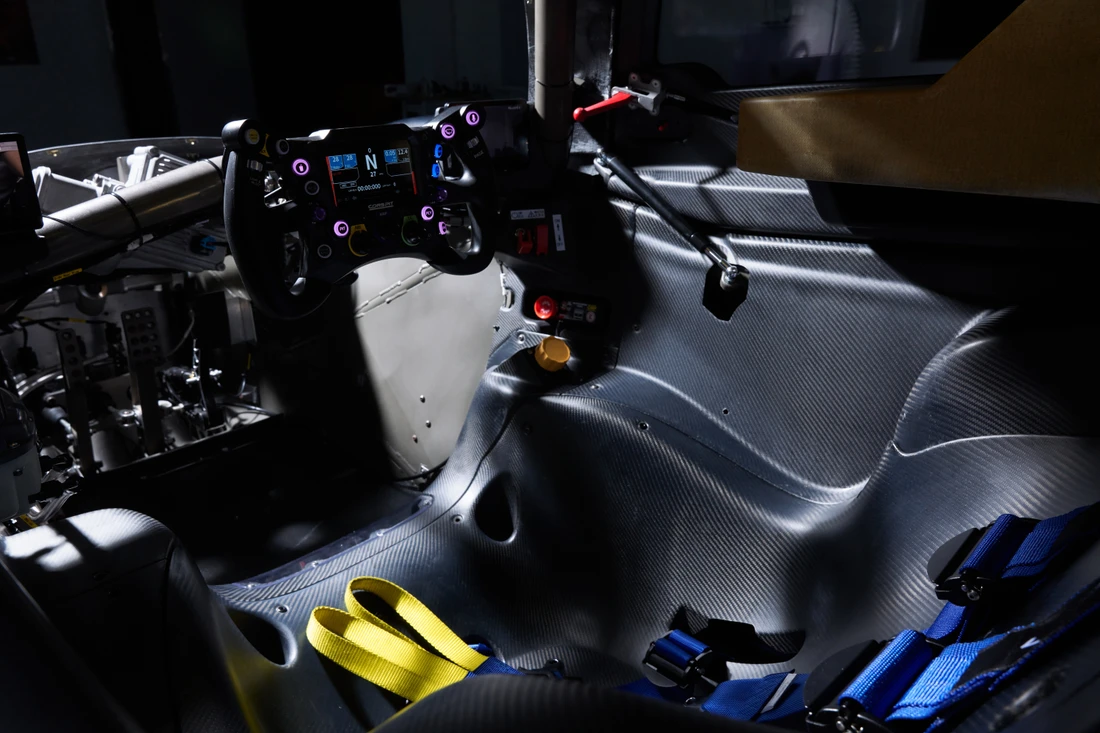

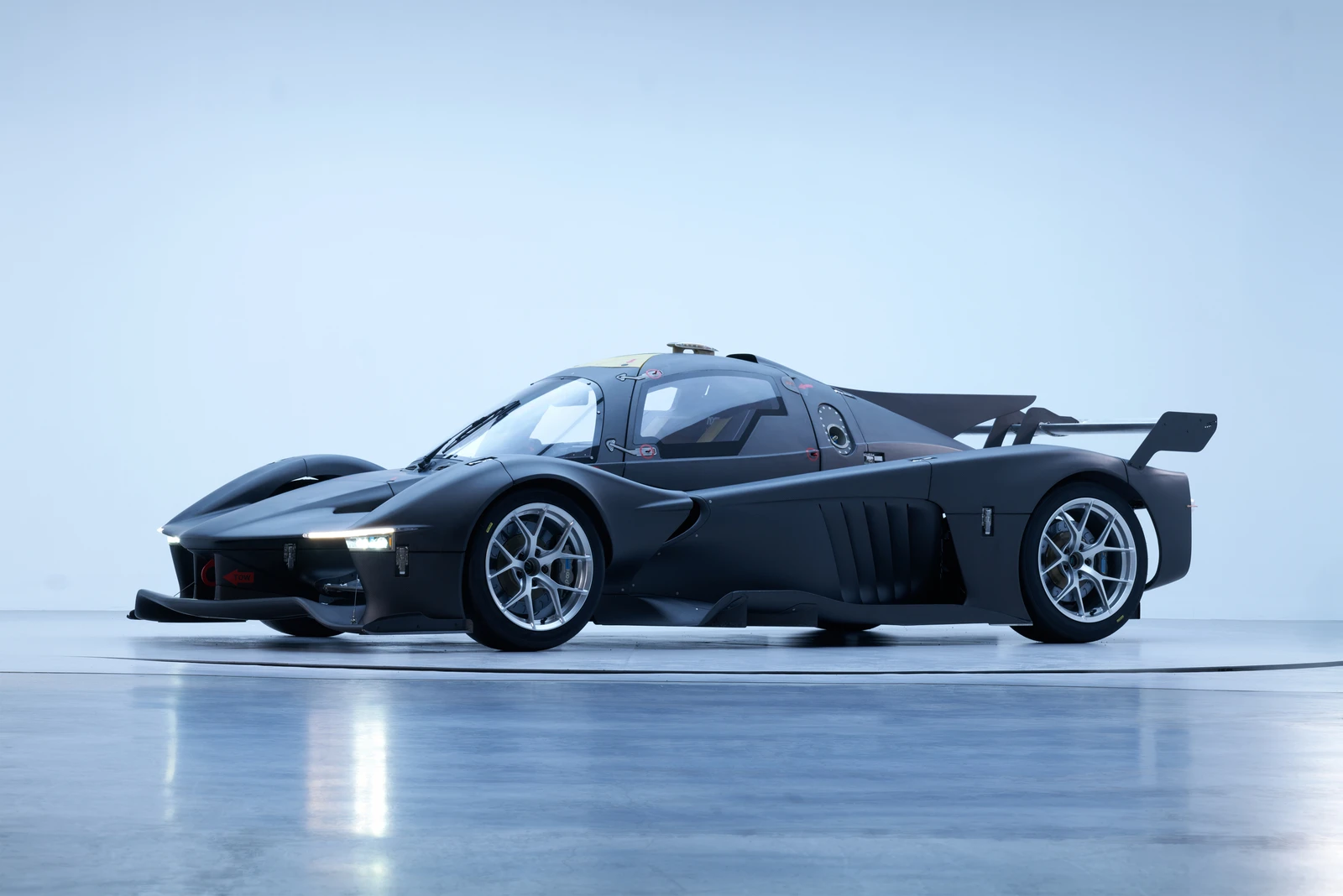

Image supplied by NXT. Not a Project Apex test photograph.
No independent vehicle technical report has been published by Project Apex.
